322 - transmission gear (unit) for Nissan Vanette Serena KVC23

	Frame / Series KVC23 / C23 body W (wagon ) engine CD20ET (2000 diesel turbo ﾃﾞﾝｾｲ) drive 2WD (two-wheel drive ) Manufacture period 01.1997 - 01.1998 grade FX transmission AT (automatic transmission )

---

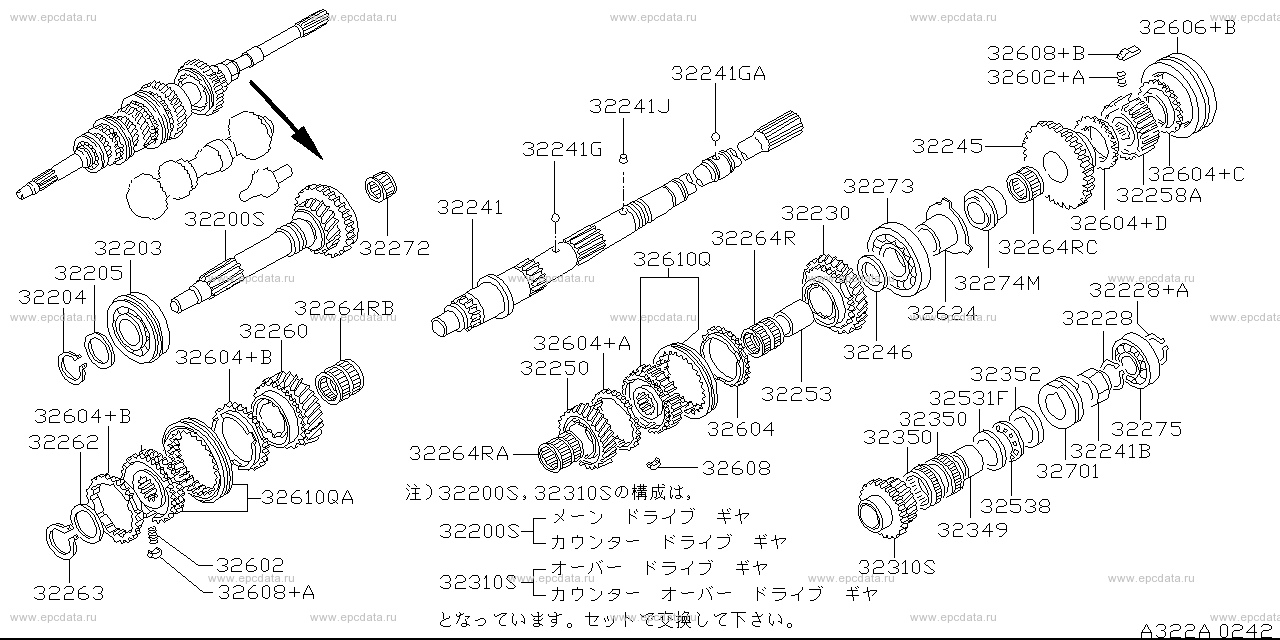

Applies for models	Manufacture period	Spec
2WD.(SR20DE+CD20T).MT +2WD.(SR20DE+CD20T).AT +(GA16DE+CD20).MT +(GA16DE+CD20).AT	05.1994 - 01.1997	メインギヤ（ＲＳ５Ｗ７１Ｃ）
2WD.(SR20DE+CD20ET).MT +2WD.(SR20DE+CD20ET).AT +(GA16DE+CD20).MT +(GA16DE+CD20).AT	01.1997 - 01.1998	メインギヤ（ＲＳ５Ｗ７１Ｃ）
2WD.(SR20DE+CD20ET).MT +2WD.(SR20DE+CD20ET).AT +(GA16DE+CD20).MT +(GA16DE+CD20).AT	01.1998 - ...	メインギヤ（ＲＳ５Ｗ７１Ｃ）

Open full screen picture Up to the top

32200S - gear set, main & counter drive 32203 - bearing, main drive 32204 - ring, snap 32205 - spacer, bearing main drive gear 32228 - ring, snap over drive bearing 32228+A - ring, snap over drive bearing 32230 - gear assembly, first 32241 - shaft, main 32241B - nut, main shaft 32241G - ball, steel 32241GA - ball, steel 32241J - pin, lock 32245 - gear, reverse main shaft 32246 - washer, thrust 32250 - gear assembly, second 32253 - bush, first gear 32258A - hub, synchronizer reverse & over drive 32260 - gear assembly, third 32262 - washer, thrust 32263 - ring, snap 32264R - bearing, needle main shaft 32264RA - bearing, needle main shaft 32264RB - bearing, needle main shaft 32264RC - bearing, needle main shaft 32272 - bearing, pilot main 32273 - bearing, main shaft 32274M - bush, reverse main gear 32275 - bearing, main shaft 32310S - gear set, main & counter over drive 32349 - bush, over drive gear 32350 - bearing, over drive gear 32352 - washer, thrust 32531F - spacer 32538 - bearing, roller 32602 - spring, shifting insert 32602+A - spring, shifting insert 32604 - ring, balk 32604+A - ring, balk 32604+B - ring, balk 32604+C - ring, balk 32604+D - ring, balk 32606+B - sleeve, coupling 32608 - insert, shifting 32608+A - insert, shifting 32608+B - insert, shifting 32610Q - sleeve & hub, coupling 32610QA - sleeve & hub, coupling 32624 - spacer, insert stop 32701 - gear, drive speedometer

---

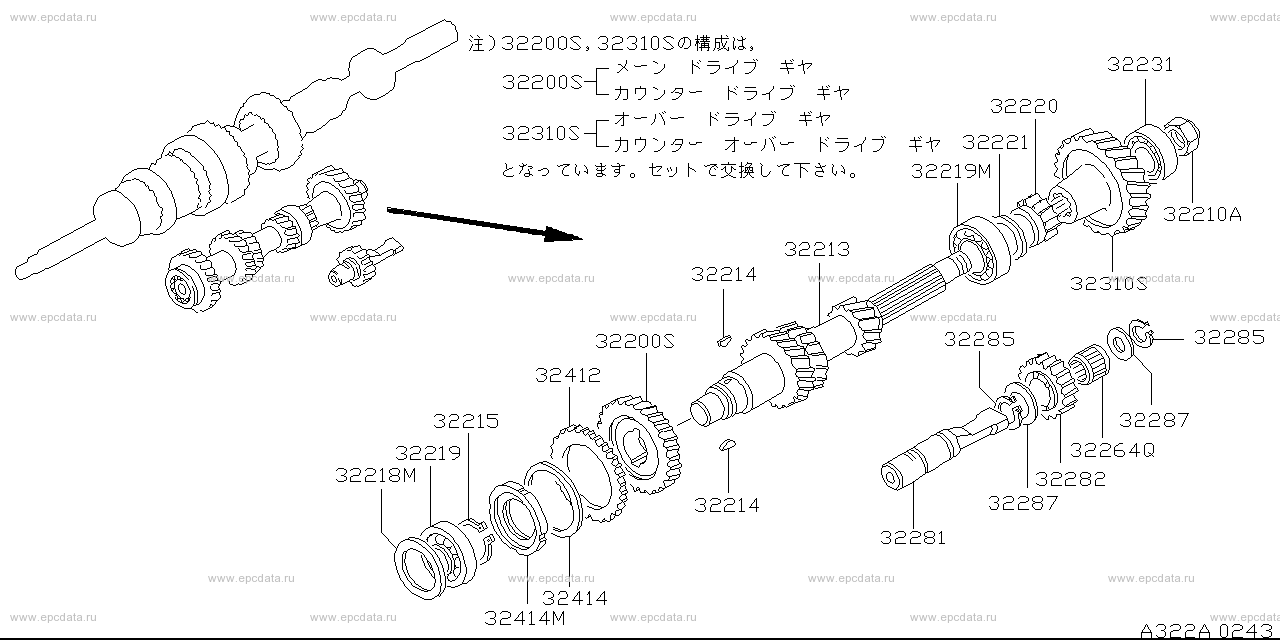

Applies for models	Manufacture period	Spec
2WD.(SR20DE+CD20T).MT +2WD.(SR20DE+CD20T).AT +(GA16DE+CD20).MT +(GA16DE+CD20).AT	05.1994 - 01.1997	カウンターギヤ（ＲＳ５Ｗ７１Ｃ）
2WD.(SR20DE+CD20ET).MT +2WD.(SR20DE+CD20ET).AT +(GA16DE+CD20).MT +(GA16DE+CD20).AT	01.1997 - 01.1998	カウンターギヤ（ＲＳ５Ｗ７１Ｃ）
2WD.(SR20DE+CD20ET).MT +2WD.(SR20DE+CD20ET).AT +(GA16DE+CD20).MT +(GA16DE+CD20).AT	01.1998 - ...	カウンターギヤ（ＲＳ５Ｗ７１Ｃ）

Open full screen picture Up to the top

32200S - gear set, main & counter drive 32210A - nut 32213 - gear, counter 32214 - key, woodruff 32215 - ring, snap 32218M - shim, bearing 32219 - bearing, counter shaft 32219M - bearing, counter shaft 32220 - gear, reverse counter 32221 - spacer, counter reverse gear 32231 - bearing, counter shaft 32264Q - bearing, needle 32281 - shaft, reverse idler 32282 - gear, reverse idler 32285 - ring, snap 32287 - washer, thrust reverse idler 32310S - gear set, main & counter over drive 32412 - gear, sub counter drive gear 32414 - spacer, sub gear 32414M - bracket, sub gear counter drive gear

Vanette Serena KVC23
